Products LineupCamera Module

Nippon Chemi-con's CMOS Camera modules are the best as any image input and sensing applications in order to low power consumption, excellent color reproduction and small module profile by using our optical and signal
Automotive products, Event data recorder, Intercom, Surveillance, Code reader, Biometrics ID, Sensing device
Small lot production acceptable (from 500pcs ⁄ LOT)

Product lineup

Interface Signal processing pixels Part Number Appearance Dimention [mm] Angle of view(TYP) Optical Format Feature
Horizontal Vertical
Parallel/YUV VGA
640×480		 NCM03-V NCM03-V 8.4×11.8×5*1 54° 42° 1/4"
  • Smallest size
  • Max30fps
NCM03-ZE NCM03-ZE 20×15×17*1 80° 63° 1/4"
  • AECQ
  • High Dynamic Range
  • Max 60fps
SXGA
1280×1024		 NCM13-M NCM13-M 10.2×13.5×6.9*1 55° 42° 1/4"
  • 3 types of lenses
  • Max 15fps
NCM13-K4 NCM13-K4 16×20×11.1*1 130° 110°
NCM13-K2 NCM13-K2 16×20×14*1 190° 158°
Parallel/RAW WVGA
752×480		 NCM03-CB NCM03-CB 20×15×18*1 86°*3 64° 1/3"
  • Global Shutter
  • 30fps
  • Color or Monochrome output
HD
1280×960		 NCM12-E NCM12-E 27×18.6×17.9*1 101° 81° 1/3"
  • Global Shutter
  • 54fps(960p) 60fps(720p)
  • Monochrome output
NTSC VGA
640×480
 NCM03-ZB NCM03-ZB 23×23×26*2 132° 104° 1/4"
  • High Dynamic Range
  • Waterproof IP67 compatible
NCM03-BC NCM03-BC 23×23×25.5*2 137° 111° 1/3.7"
  • Low light performance
  • Waterproof IP67 compatible
HD
1280×720		 NCM10-FA NCM10-FA 23×23×29.0*2 195°～180° 82°～104° 1/4"
  • NTSC output of megapixel resolution
  • Waterproof IP67 compatible
USB2.0 VGA
640×480		 NCM-USB-03D55 NCM-USB-03D55 15×40×6 54° 42° 1/4"
  • Camera in USB
  • USB2.0
  • USB Video Class1.0
  • Windows XP(SP2)～Windows 10
  • USB Bus Power(5.0±0.5V)
NCM-USB-03D105 15×40×12 105° 77°
HD
1280×720		 NCM-USB-10B series
(NCM-USB-10B65)		 NCM-USB-10B series(NCM-USB-10B65) 28×28×22.5 65° 41° 1/2.7"
  • USB Camera Module small package
  • YUV422 digital output uncompressed 30fps
  • High Dynamic Range
  • Universal Serial Bus Control

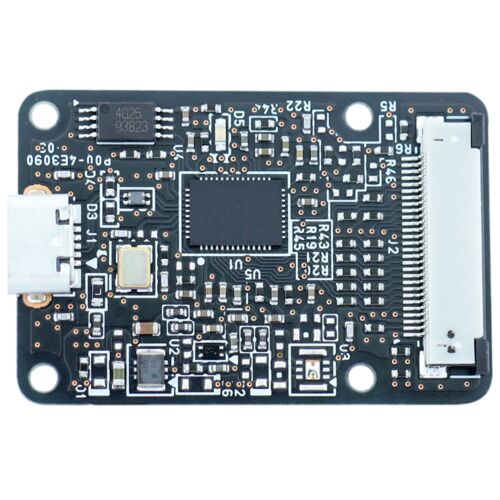

USB 2.0 For evaluation It supports each camera NCM-USB NCM-USB 20×37×5 It supports each camera
  • USB2.0
  • USB Video Class1.0(1.1)
  • Windows XP(SP2)～Windows 10
  • USB Bus Power (5.0±0.5V/0.25V)

Product specifications in this catalog are subject to change without notice.

  1. FPC part is not included
  2. Cable part is not included
  3. Setting of 640×480
  4. Please contact our sales representatives.

Under development

Interface Signal processing pixels Part Number Appearance Dimention [mm] Angle of view(TYP) Optical Format Feature
Horizontal Vertical
USB3.0 4MP
2688×1520		 Under development
NCM40-AA		 Under development NCM40-AA TBD TBD TBD 1/3"
  • USB3.0
  • Our highest pixel (4 megapixel)
Parallel HD
1280×800		 Under development
NCM10-FC		 Under development NCM10-FC TBD 193° 133° 1/4"
  • Small size, megapixels
  • AECQ100
  • Max60fps(720p Max)
MIPI Full HD
1920×1080		 Under development
NCM20-VB		 Under development NCM20-VB TBD TBD TBD 1/2.5"
  • MIPI-CSI2
  • 30fps
  • High Dynamic Range
  • LFM
