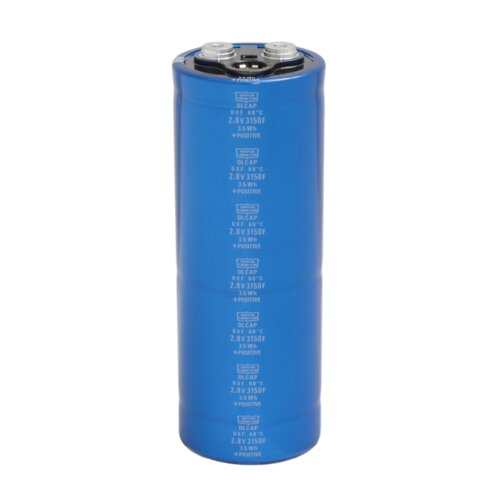

60℃ Screw Type Supercapacitors DLCAP™ DXF Series DDXF2R8LHM3B2EDH2V

  • RoHS
  • Low Internal Resistance
  • High Voltage 2.8V

DDXF2R8LHM3B2EDH2V

This product is scheduled to be discontinued. Please consider switching to a different product.

Part Number DDXF2R8LHM3B2EDH2V
Status
?
In Production：Product is in mass production.
NRND：Not recommended for new design.
To be Discontinued：We are planning to discontinue production of this item.
Discontinued：Production of this product has stopped.
Under development ：Products under development. Listed product specifications are subject to change without prior notice.
 To Be DiscontinuedSearch for alternatives
Successor Model -
Series DXF
Polarity Polar
Category Temperature Range -40～60 ℃
Temperature Characteristics, Case Code (inch/mm) -
Rated Voltage 2.8 Vdc
Capacitance 3150 F
Capacitance Tolerance 0～20%(E) / 20℃
Internal Resistance (Typ.) 0.3 mΩ
Internal Resistance (Max.) 0.4 mΩ
Dimensions ⌀ D 63.5mm
Dimensions H mm
Dimensions L 172mm
Rated Ripple Current -
Rated Ripple Voltage - Vac / -Hz
Impedance
ESR 0.4mΩ max / 20℃ / DC
Leakage Current -
Dissipation Factor (tanδ) -
Max. Charging and Discharging Current - Arms / -Hz
Number of Charging/Discharging Cycles - × 104 times
Endurance Temperature/Time/Overload 60℃ / 2000hrs / DC
Shelf Life Temperature/Time -℃ / -hrs
Terminal Coating -
Elements -
Reference Weight
?
This is a representing value calculated from a standard material composition.
Note that the reference weights are not considered as guaranteed value.
 810g
Minimum Order Quantity
?
This is the packing quantity for standard packing specifications.
 15 pcs
RoHS Compliant
?
10 Restricted Substances
2011/65/EU and (EU) 2015/863
 Compliant
AEC-Q200
?
Please refer to AEC-Q 200 for details.
 -

Dimension [mm]

Dimension

Part Numbering System

Part Numbering System
