Name: DDKJ2R7ELL850KM70T
Brand: NIPPON CHEMI-CON CORPORATION
SKU: DDKJ2R7ELL850KM70T

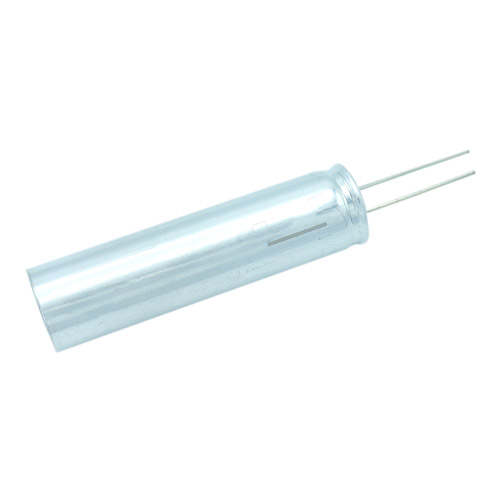

65℃ Radial Lead Type Supercapacitors DLCAP™ DKJ Series DDKJ2R7ELL850KM70T

AEC-Q200
RoHS

High Voltage
Long Life

DDKJ2R7ELL850KM70T

DDKJ2R7ELL850KM70T is a 2.7V / 85000000µF Supercapacitors DLCAP™ with Radial Lead Type 18×70 mm size, Endurance of 1500 hours at 65℃, and AEC-Q200 compliance.

Part Number	DDKJ2R7ELL850KM70T
Status ? In Production：Product is in mass production. NRND：Not recommended for new design. To be Discontinued：We are planning to discontinue production of this item. Discontinued：Production of this product has stopped. Under development ：Products under development. Listed product specifications are subject to change without prior notice.	In Production
Successor Model	-
Series	DKJ
Polarity	Polar
Category Temperature Range	-40～65 ℃
Temperature Characteristics, Case Code (inch/mm)	-
Rated Voltage	2.7 Vdc
Capacitance	85 F
Capacitance Tolerance	-10～10%(K) / 25℃
Internal Resistance (Typ.)	7.7 mΩ
Internal Resistance (Max.)	9.2 mΩ
Dimensions ⌀ D	18mm
Dimensions H	mm
Dimensions L	70mm
Rated Ripple Current	-
Rated Ripple Voltage	- Vac / -Hz
Impedance
ESR	5.2mΩ max / 20℃ / 1kHz
Leakage Current	-
Dissipation Factor (tanδ)	-
Max. Charging and Discharging Current	- Arms / -Hz
Number of Charging/Discharging Cycles	- × 10⁴ times
Endurance Temperature/Time/Overload	65℃ / 1500hrs / DC
Shelf Life Temperature/Time	-℃ / -hrs
Terminal Coating	Sn
Elements	-
Reference Weight ? This is a representing value calculated from a standard material composition. Note that the reference weights are not considered as guaranteed value.	24.5g
Minimum Order Quantity ? This is the packing quantity for standard packing specifications.	156 pcs
RoHS Compliant ? 10 Restricted Substances 2011/65/EU and (EU) 2015/863	Compliant
AEC-Q200 ? Please refer to AEC-Q 200 for details.	Compliant
