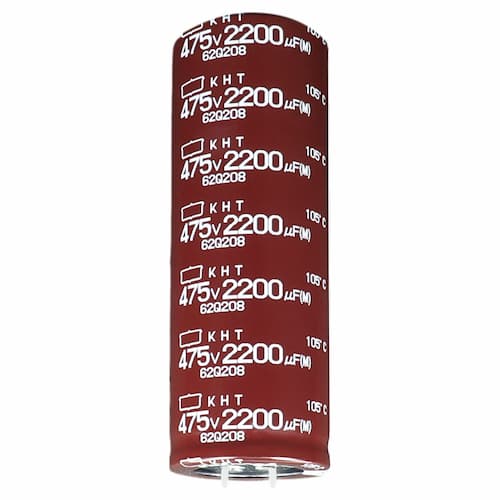

105℃ Snap-in Type Aluminum Electrolytic Capacitors KHT Series EKHT451VSN1C2MA501
- RoHS
- Downsizing
- High Capacitance
- Halogen Free
- For AI Server Power Supplies and Solar Power Systems
We have developed the “KHT Series,” Snap-in type aluminum electrolytic capacitor that offers higher capacitance compared to existing KHR Series.In the rapidly expanding AI server market, systems are required to achieve both miniaturization and higher power output simultaneously. leading to growing demand for higher capacitance in power supply design.The KHT Series achieves higher capacitance especially for the long‑L size range, which had been strongly requested.
| Part Number | EKHT451VSN1C2MA501 |
|---|---|
Status
|
In Production |
| Series | KHT |
| Polarity | Polar |
| Category Temperature Range | -40～105 ℃ |
| Rated Voltage | 450 Vdc |
| Capacitance | 1270 µF |
| Capacitance Tolerance | -20～20%(M) / 20℃, 120Hz |
| Dimensions ⌀ D | 35mm |
| Dimensions L | 50mm |
| Rated Ripple Current | 2970mArms / 105℃ / 120Hz |
| Leakage Current | 2260 μA max / 20℃, after 5 minutes |
| Dissipation Factor (tanδ) | 0.4 max / 20℃, 120Hz |
| Endurance Temperature/Time/Overload | 105℃ / 3000hrs / DC+Ripple |
| Shelf Life Temperature/Time | 105℃ / 1000hrs |
| Terminal Coating | Sn |
Minimum Order Quantity
|
200 pcs |
RoHS Compliant
|
Compliant |
Rated Ripple Current Multipliers
Zoom
| Frequency [Hz] | 50 | 120 | 300 | 1k | 10k | 50k |
|---|---|---|---|---|---|---|
| Multipliers | 0.74 | 1.00 | 1.13 | 1.21 | 1.25 | 1.25 |
Dimension [mm]
Part Numbering System
