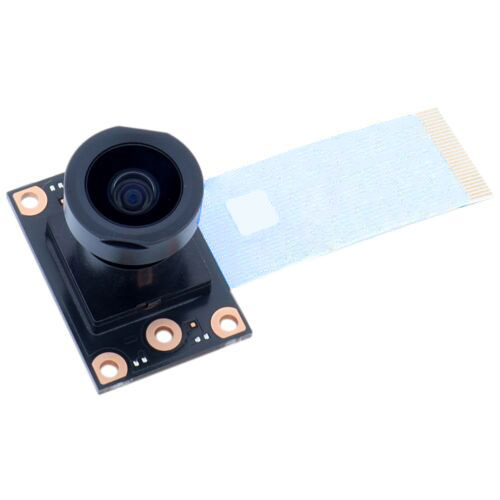

1.23Mega pixels, Global Shutter Camera Module NCM12-E

  • RoHS2
  • Global Shutter
  • 54fps(960p) 60fps(720p)
  • Monochrome output


NCM12-E is a global shutter type Monochrome camera module.
It has horizontall 1280 pixels, Vertical 960 pixels via 1/3 inch sensor.
This camera module is ideal as an image input device for machine vision. (e.g. Mobile Observation, Factory Automation, and Industrial Robots)

Product Information

Image Sensor 1/3 inch CMOS monochrome sensor
Shutter Type Global Shutter
Dimension(mm) 27x18.6x17.9 *1
Effective Pixels 1280(H)x960(V)
Pixel Size 3.75um(H)x3.75um(V)
Output Interface Digital 12bit parallel
Output Signal Format RAW 12bit
Frame Rate(Max.) 54fps(960p) 60fps(720p)
Angle Of View(Typ.) (H)101°/(V)81°/(D)121°:1280(H)x960(V)
Optical Filter Without filter
F Number F2.4
Connection Type FFC
Minimum order quantity 500pcs
RoHS Compliant
10 Restricted Substances
2011/65/EU and (EU) 2015/863

*1 FPC/FFC part is not included

Recommended Operating Conditions

Power Supply Voltage
Analog Power Supply
Digital Power Supply
I/O Supply
Power Consumption(Typ.) 290mW
Operating Temperature(No condensation) -20℃~+60℃
Storage Temperature(No condensation) -30℃~+70℃


Auto Exposure Control Yes
Auto White Balance No
Auto Gain Control No
Image Inversion up/down, left/right
Flicker correction No
Waterproof and Dustproof Performance No

Dimension [mm]

  • Dimension [mm]

  • Dimension [mm]
